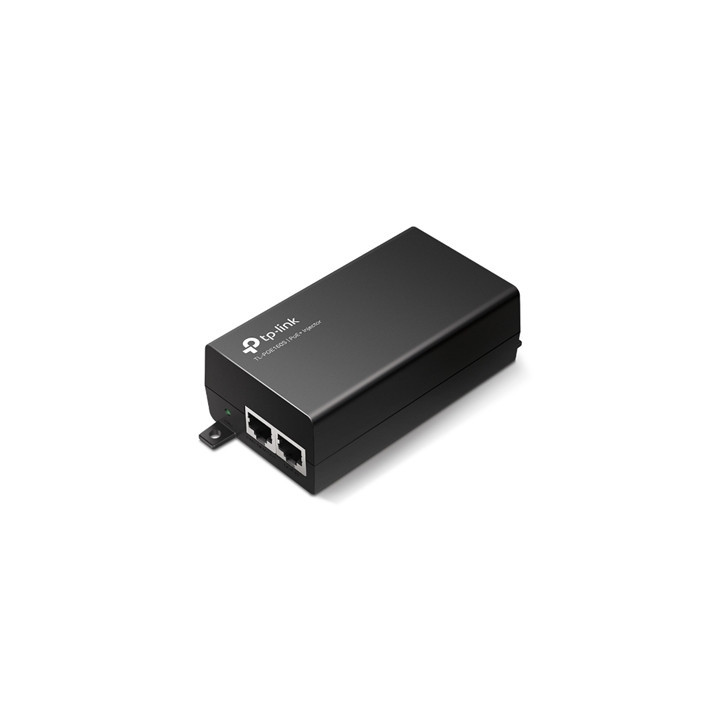

TP-Link TL-POE160S IEEE 802.3at 30W PoE+ Injector

TP-Link TL-POE160S Power Over Ethernet PoE+ Injector (802.3at/30W)

Key Features
2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation requires no configuration
Integrated power supply

What This Product Does
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters such as TP-Link's TL-POE10R or other equivalent product to expand your network to where there are no power line or outlet where you wish to fix device such as AP IP Camera or IP Phone etc.

Specifications

NETWORK
Standards and Protocols IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3af IEEE802.3at

GENERAL

Certification
FCC CE RoHS

Environment
0°C to 40°C (32°F to 104°F) Operating Temperature
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90%RH non-condensing
Storage Humidity 5% to 90%RH non-condensing

PACKAGE CONTENTS
PoE+ Injector TL-POE160S
Installation Guide
Power Cord
RJ45 Cable
Wall Mounting Kits

HARDWARE FEATURES

Network Media
10BASE-T: UTP category 3 4 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5 5e 6 cable(maximum 100 m)

Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket

Power Consumption
Input: 100-240 V 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play

LED Indicator ON
Supplying power normally
OFF: No power supply

Dimensions ( W x D x H )
4.9*2.3*1.4 in (125*59.4*36.8 mm)
