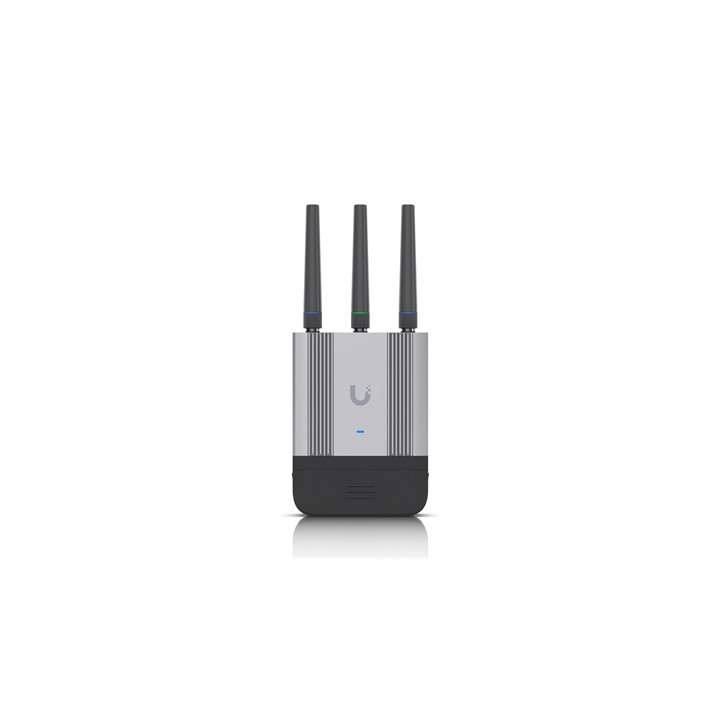

Ubiquiti UMR-INDUSTRIAL UniFi Mobile Router Industrial 4G LTE Cat 4 Mobile WiFi Indoor/Outdoor Router (UK Plug)

Compact ruggedized and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

Dimensions
Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3)
With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3)
With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3)

Weight
Device: 360 g (12.7 oz)
Device with outdoor cover: 395 g (13.9 oz)
DIN rail/wall mounts: 25 g (0.9 oz)

Enclosure Material
Polycarbonate aluminum

Mount Material
Wall/pole mount: polycarbonate
DIN rail mount: polycarbonate

Pole Mount Diameter
1–2 on pipe outer diameter

Wind Loading
38.8 N at 200 km/h (8.7 lbf at 125 mph)

Weatherproofing
Device with outdoor cover: IP66

Management Interface
Ethernet
WiFi

Networking Interface
(2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4

PoE Interface
(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.

Power Supply
UniFi PoE switch (48—54V DC)
USB Type-C (5V DC)
4-pin ATX DC power socket (9—30V DC)

Max. Power Consumption
12.5W

SIM
nano-SIM (4FF)

LTE Bands
B1 B3 B7 B8 B20 B28

3G Bands
B1 B8

LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps

WiFi Standards
802.11 b/g/n WiFi 2.4G 20/40 MHz

Max. WiFi TX Power
22 dBm

WiFi MiMo
2x2

GPS
Yes

Antenna SMA Ports
(1) Mobile 1: SMA female connector supports 1Tx and 1Rx
(1) Mobile 2: SMA female connector supports 1Rx only
(1) GPS: SMA female connector
(2) WiFi: RP-SMA female connectors

External Antennas
(2) Mobile/LTE antennas with SMA male connectors
(1) GPS antenna with SMA male connector
(2) WiFi antennas with RP-SMA male connectors

LED
Status: blue/white

Button
Factory reset

Mounting
DIN rail/wall/pole mount (Included)

Supported WiFi Data Rates
802.11b
1 2 5.5 11 Mbps

802.11g
6 9 12 18 24 36 48 54 Mbps

802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS7 HT 20/40)
