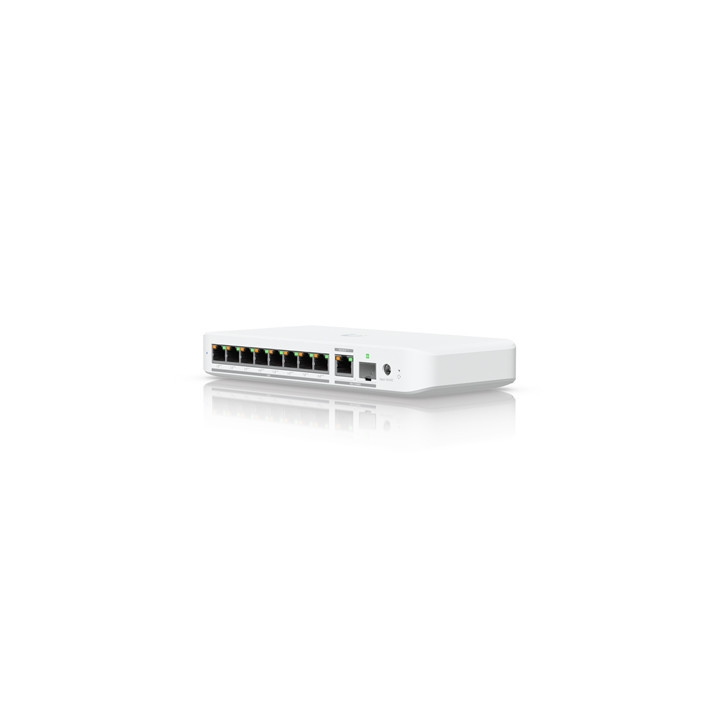

Ubiquiti USW-FLEX-2.5G-8-POE UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered POE++ Managed Switch

Flexible 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.

Dimensions
212.9 x 99.4 x 33.5 mm
(8.4 x 3.9 x 1.3)

Port Layout
2.5 GbE RJ45
8 (All PoE++)

10 GbE RJ45
1 (PoE+++)

10G SFP+
1

Max. PoE Output
Up to PoE++

Total PoE Availability
PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
210W AC adapter input: 196W

Form Factor
Compact Desktop wall DIN magnetic

Switching Capacity
60 Gbps

Total Non-Blocking Throughput
30 Gbps

Forwarding Rate
45 Mpps

Supported VLANs
256

MAC Address Table Size
4000

STP & RSTP
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast & Broadcast Rate Limiting
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

Loop Protection
Yes

PoE Ports
PoE++
8

Max. PoE Wattage per Port by PSE
PoE
15.4W

PoE+
32W

PoE++
64W

Max. Power Consumption
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)

Power Method
(1) AC/DC adapter (Excluded)
(1) PoE+++

Power Input Method
DC Input
PoE

Supported Voltage Range
50—57V DC/PoE

Management
Ethernet

Weight
567 g (20 oz)

Enclosure Material
Polycarbonate

Mount Material
Polycarbonate

Certifications
CE FCC IC
