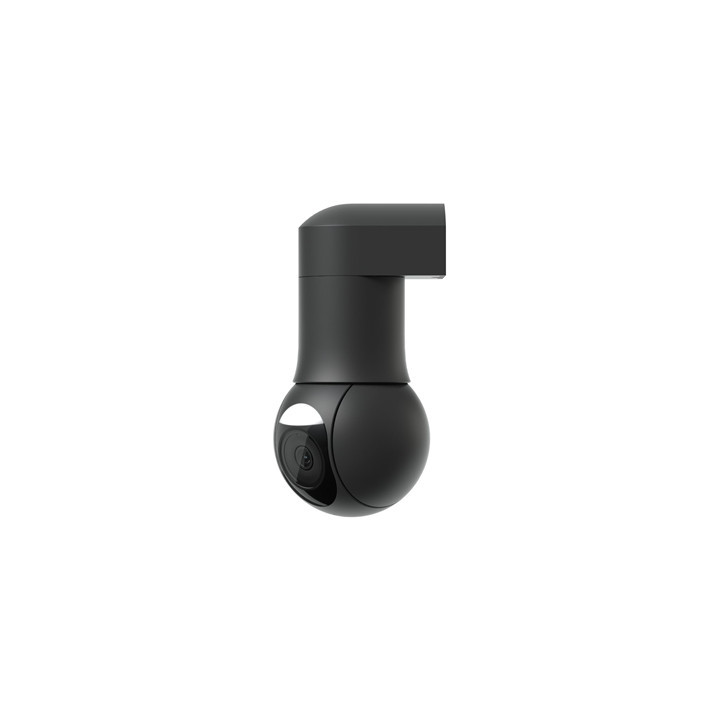

Ubiquiti UVC-G5-PTZ G5 Compact All-Weather Pan Tilt Zoom Camera - Black

Compact all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.

Specifications

Dimensions
Without mount: d90 x 152.5 mm
(d3.5 x 6)

With mount: 90 x 94 x 179.5 mm
(3.5 x 3.7 x 7)

IR Night Vision
20 m (65 ft)

Optical Zoom
2K

Smart Detections (People Vehicles Animals)
Yes

Resolution
2K

Field of View
Wide: H: 99.7d V: 51.9d D: 121d
Tele: H: 45.5d V: 25.4d D: 52.4d

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall mount pole mount (Included)
Conduit adapter surface in-ceiling pendant corner mount (Optional)

UniFi Application Suite
Protect

Networking Interface
10/100 MbE RJ45 Port

Video
Max Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)

Optics
Sensor: 5MP 1/2.7 CMOS
Lens: F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4
Night Mode: Built-in IR & white LED illumination with IR cut filter

Hardware

Max. Power Consumption
14W

Supported Voltage Range
37 - 57V DC

Power Method
PoE+

Pole Mount Diameter
1.5–2 (38–50 mm)

Weight
Without mount: 580 g (1.3 lb)
With mount: 650 g (1.4 lb)

Enclosure Material
Aluminum alloy polycarbonate

Mount Material
Wall mount: polycarbonate
Pole mount: aluminum alloy

Button
(1) Factory-reset
