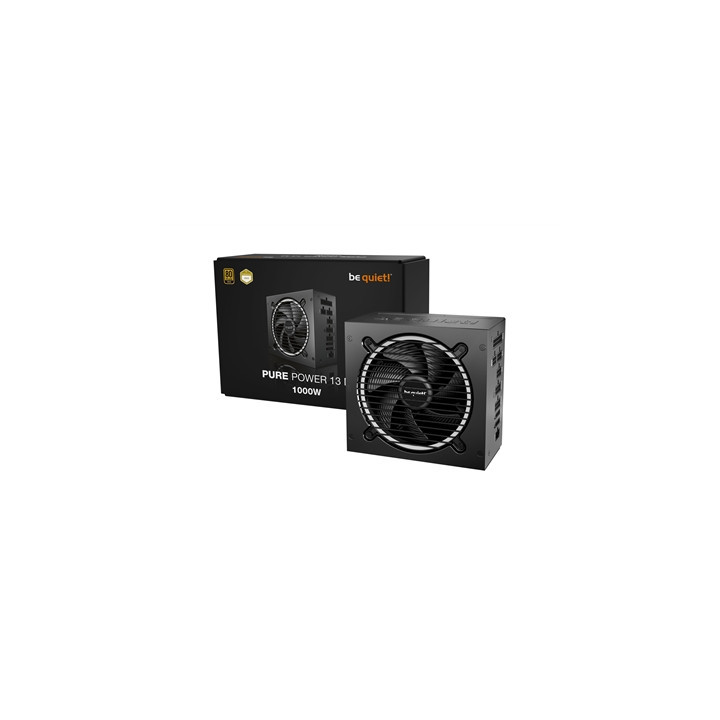

be quiet! Pure Power 13 M 1000W is ATX 3.1 compliant and PCIe 5.1 compatible 10-year manufacturer's warranty.

The be-quiet! Pure Power13M 1000W (MPNBP028EU) is a fully modular high-efficiency PSU designed for advanced desktop systems. It meets ATX 3.1 standards and offers PCIe 5.1 compatibility including a native 12V-2x6 connector for next-gen GPUs. Paired with 80 PLUS Gold certification and semi-passive (zero-RPM) cooling it delivers whisper-quiet yet powerful performance backed by robust protections and a 10-year warranty.

Key Features
Continuous / Peak Power:1000W / up to 1050?W
Efficiency:80 PLUS Gold up to ~94.4% efficiency at 50% load
Compliance:ATX 3.1 EPS 12V v2.92
PCIe Support:1 x 12V-2x6 connector (600?W) plus 4 x 6+2-pin PCIe connectors
Rail Design:Single massive 12V rail that handles power spikes reliably
Cooling:120mm rifle-bearing fan with zero-RPM operation at low load
Topology:LLC with digital control for tight voltage regulation
Modularity:Fully modular flat and sleeved cables for clean build layout
Warranty:10-year manufacturer’s warranty MTBF =100 000hours

Full Technical Specification

Model / MPN:
Pure Power 13 M 1000W (BP028EU)

Form Factor:
ATX 3.1 (EPS 12V v2.92)

Power Output:
1000W continuous / 1050W peak

Efficiency Rating:
80 PLUS Gold (up to ~94.4% at 50% load)

Input Voltage:
100–240VAC

Input Frequency:
50–60Hz

Input Current:
~6A @ 240VAC ~12A @ 120VAC

Power Factor:
=0.98 at full load

Modern Standby:
Supported;<0.1W standby consumption

Operating Temperature:
Up to 40°C

MTBF:
=100 000 hours at 25°C

Rail Operation:
Single powerful 12V rail (up to 83A)

Additional Rails:
3.3V / 5V rails at 22A each; -12?V +5VSB outputs supported

Hold-up Time:
~21ms at full load; ~28ms at 80% load

Protections:
OCP OVP UVP OPP OTP SCP surge/inrush protection

Fan:
120mm rifle-bearing semi-passive zero-RPM at low load

Noise Levels:
~13.6dB(A) at ~20% load; ~30.3dB(A) at full load

Modularity:
Fully modular cables flat and sleeved style

Cable Length:
Up to ~95cm total; ~55cm to motherboard

Connectors:
1 x 20+4-pin ATX
1 x 4+4-pin CPU (EPS)
1 x 8-pin CPU
1 x 12V-2x6 (600W)
4 x 6+2-pin PCIe
6 x SATA power
2 x Molex (PATA)

Dimensions:
~160x150x86mm (WxDxH)

Warranty:
10-year limited warranty
