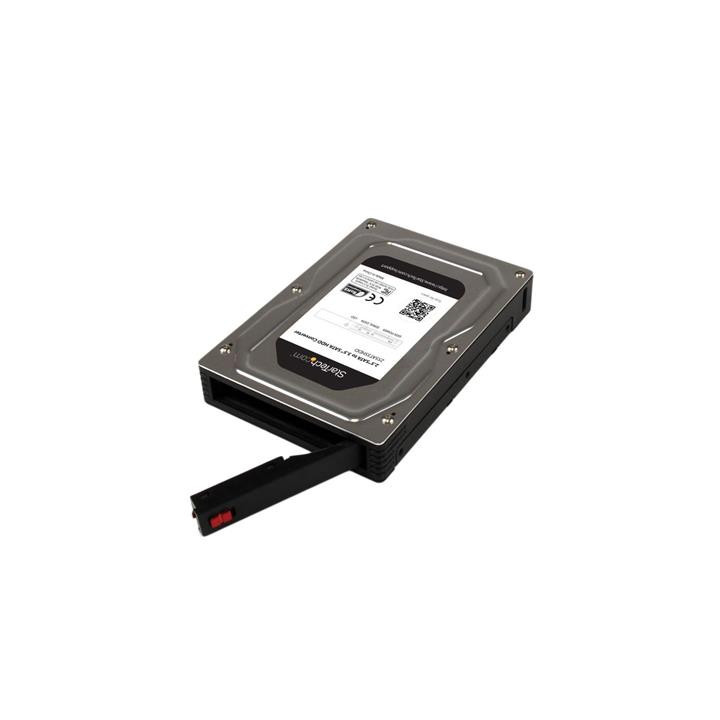

StarTech 2.5“ to 3.5“ SATA Aluminum Hard Drive Adapter Enclosure with SSD / HDD Height up to 12.5mm

Turn a 2.5 SATA HDD/SSD into a 3.5 SATA Drive

- Supports 2.5 SSD/HDD up to 12.5mm in height
- Standard 3.5 HDD mounting points
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Tool-less installation

Applications
- Replace your 3.5 hard drives with same-size SSDs
- Install a 2.5 SATA HDD/SSD into any 3.5 hard drive bay such as a desktop chassis backplane kit or docking station
- Repurpose unused laptop hard drives to work with your desktop computer or as a hot-swap storage solution

The 25SAT35HDD 2.5 to 3.5 hard drive adapter enclosure turns a 2.5 SATA hard drive (HDD) or solid state drive (SSD) into a 3.5 drive.

The adapter enclosure lets you substitute a 3.5 hard drive for a 2.5 SSD/HDD in any application that would typically require a 3.5 drive such as desktop chassis backplane or docking station. The enclosure has the same dimensions as a standard 3.5 hard drive including mounting points and SATA connector locations.

With support for drives up to 12.5mm in height and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5 SATA hard drive or solid state drive.

The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Seamless 2.5 SSD/HDD integration with standard 3.5 hard drive dimensions
- Maximum drive compatibility with support for SSDs/HDDs up to 12.5mm in height
- Improve the performance speed of any 3.5 hard drive application by adapting a 2.5in solid state drive

Warranty Information
Warranty: 2 Years

Hardware
Drive Installation: Removable
Drive Size: 2.5in
Interface: SATA
Number of 2.5 inch bays: 1
Number of Drives: 1

Performance
Max Drive Capacity: Currently tested with up to 1TB 7200 RPM hard drives
Type and Rate: SATA III (6 Gbps)

Connector(s)
Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin)
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)

Environmental
Humidity: 5% - 85% RH
Operating Temperature: 5°C to 55°C (32°F to 131°F)
Storage Temperature: 5°C to 55°C (32°F to 131°F)

Physical Characteristics
Enclosure Type: Aluminum and Plastic
Max Drive Height: 12.5 mm [0.5 in]
Product Height: 36 mm [1.4 in]
Product Length: 146 mm [5.7 in]
Product Weight: 260 g [9.2 oz]
Product Width: 101.5 mm [4 in]

Packaging Information
Shipping (Package) Weight: 0.3 kg [0.6 lb]

What's in the Box
Included in Package:
1 - 2.5 to 3.5 SATA HDD/SSD Enclosure
1 - Screw kit
1 - Install Guide
