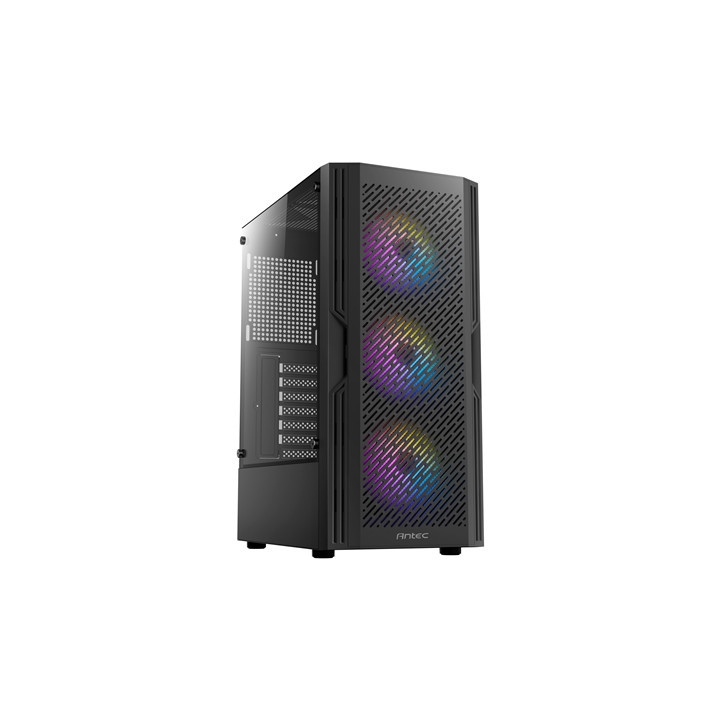

Antec AX20 Case Black Mid Tower 1 x USB 3.0 / 2 x USB 2.0 Tempered Glass Side Window Panel Slanted Bar & Mesh Design for Massive Airflow 3 x Pre-Installed RGB LED Fans ATX Micro ATX Mini-ITX Compatible

AX20
Mid-Tower Gaming Case

Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.

Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

High-Airflow Front Panel
Massive air intake at the front top and bottom. Creating multiple airflow paths.

Pre-Installed
3 x 120mm RGB Fixed Model Fans

Form Factor
Mid Tower

Materials
Steel
Plastic

Mainboard Support
ATX
Micro ATX
Mini-ITX

RGB
FRGB so no header

I/O Panel
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO

Side Panel
Tempered glass

Drive Bays
3.5 / 2.5: 2 / 1
2.5: 2

Expansion
Slots: 7

Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm

Included Fans
3 x 120 RGB fixed model fans in front

Radiator Support
Front: 120 / 140 / 240 / 280mm

Clearance
Max GPU Length: = 270mm
Max CPU Cooler Height: = 155mm
Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD)

Dust Filter
Front

Weight
Net: 4 Kgs
Gross: 4.71 Kgs

Dimensions ( D x W x H )
358 x 207 x 451mm
